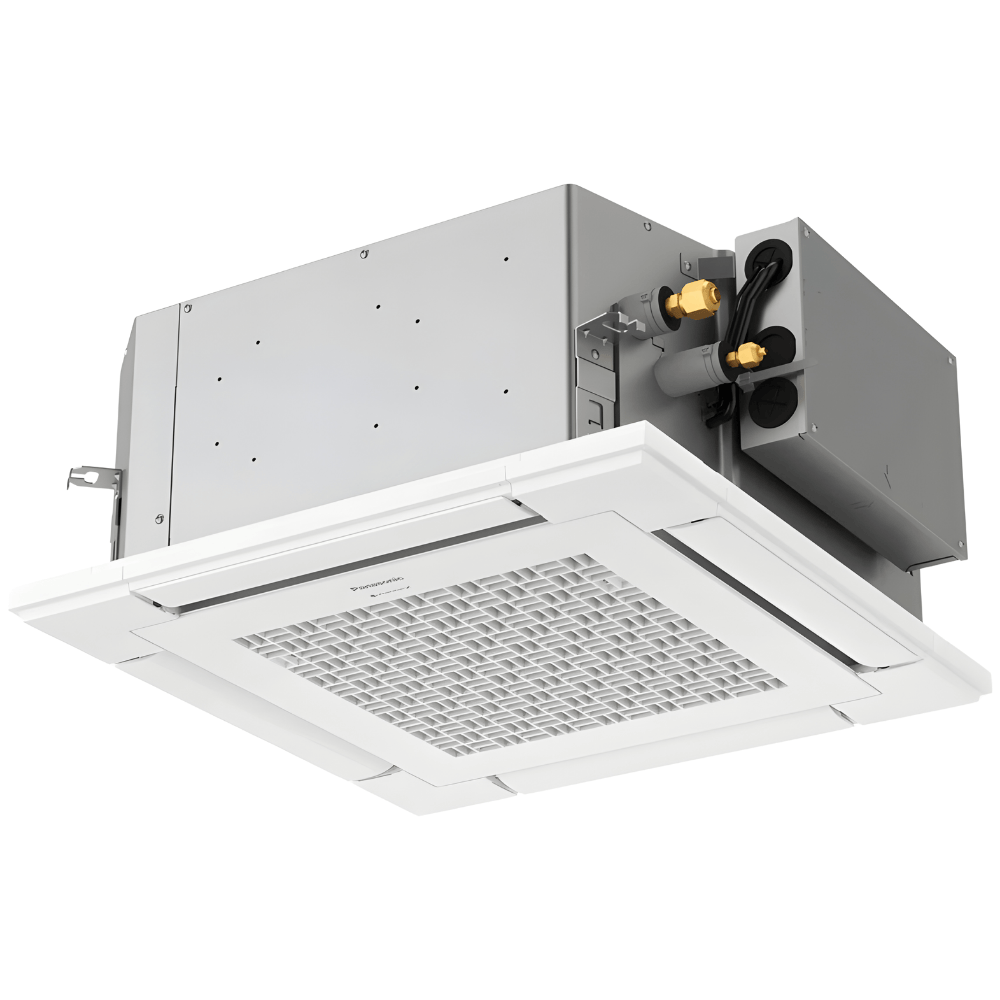

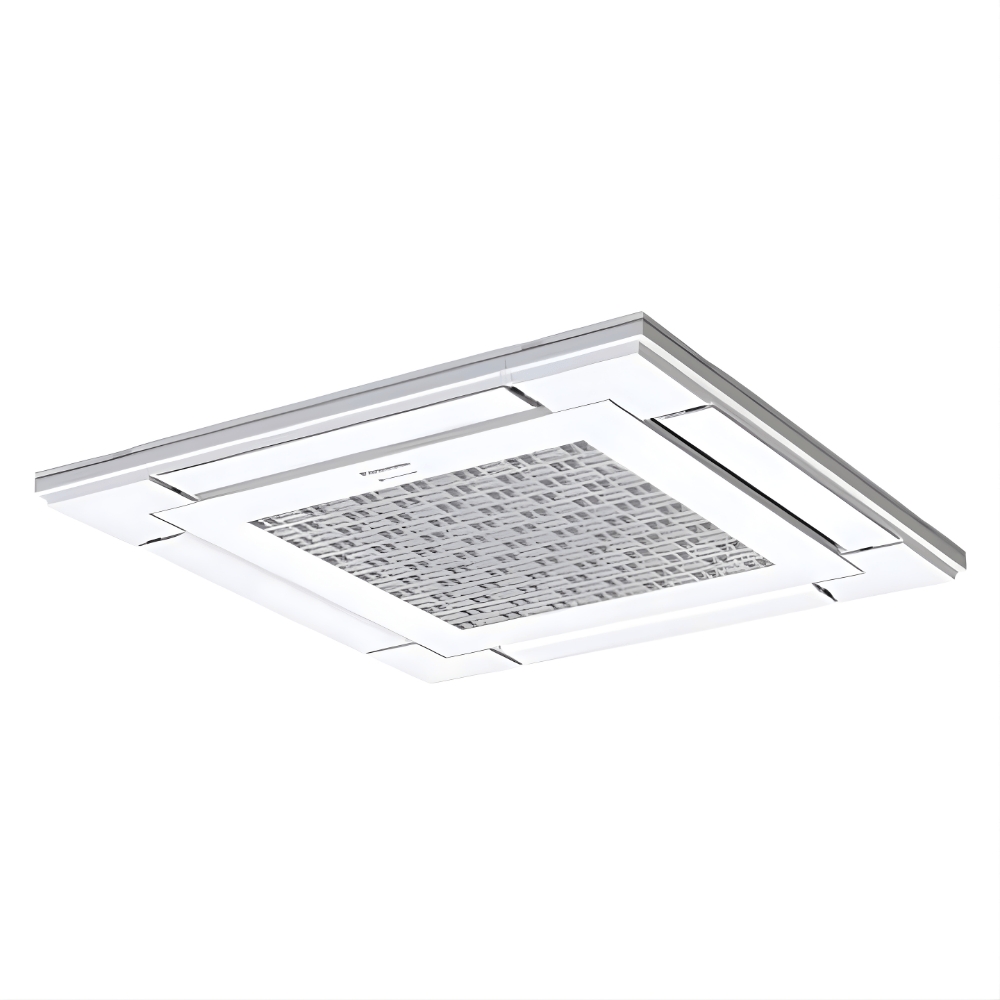

Panasonic PACi NX 90x90 10.0kW Ceiling Cassette Split System
Panasonic PACi NX 90x90 10.0kW Ceiling Cassette Split System
SKU: KIT-100PU3Z5
Shipping calculated at checkout.
- Powerful commercial cooling
- Wide operating range
- Quiet turbo fan
- Cleaner indoor air
Out of stock
Please contact us for a lead time.
Add-ons
Refrigerant pipe length None
Outdoor unit wall brackets None
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
The Panasonic PACi NX 90x90 10.0kW is a 4-way ceiling cassette split system for cooling and heating large commercial spaces. Offices, shops, hospitality venues and high-traffic buildings get steady climate control from a unit that sits in the ceiling.
Built for large and busy spaces
Big rooms with a steady flow of people need plenty of cooling in summer and dependable heat in winter. This cassette is designed for exactly that kind of space, and optional fresh-air intake chambers can add high-volume ventilation for extra comfort when the room is busy.
10.0kW cooling, A++ rated
In its Elite version, it delivers a nominal 10.0kW of cooling and 11.2kW of heating, with A++ seasonal ratings for both. An intelligent turbo fan and optimised heat exchanger keep performance high while cutting consumption, and it carries on cooling in outdoor temperatures from -20°C to +48°C.
Quiet running and cleaner air
The turbo fan is built for low-noise airflow, with indoor sound levels of 32 to 38 dB(A) and three fan modes to match the room. A nanoe X Mark 1 generator works around the clock, even during cooling-off cycles, to improve indoor air quality, while built-in cleaning and dry modes keep the indoor unit clean. Optional Econavi sensors detect occupancy and movement and cut wasted energy automatically.
What the installation needs
Standard and Elite versions are available, with single phase and 3 phase choices, and on a 3 phase supply it runs at 380-415V. A lightweight body, integrated drain pump and simple piping make installation quicker, and the system works with Panasonic's Bluetooth-enabled CZ-RTC6 series wired controllers. It must be installed by an F-Gas registered installer.
Specifications
