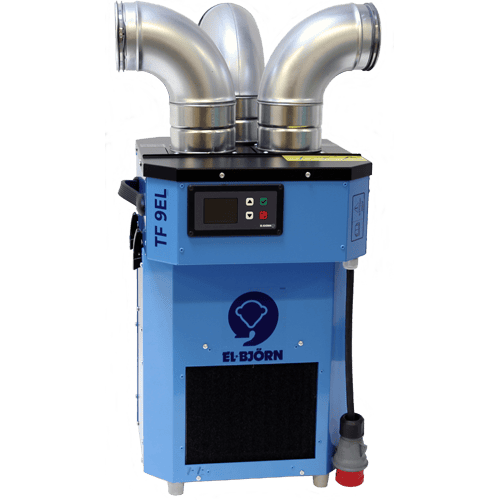

El-Björn TF9 EBC 9kW Commercial Fan Heater
El-Björn TF9 EBC 9kW Commercial Fan Heater
SKU: EB14640
Shipping calculated at checkout.
- 9kW from a 16A plug
- Digital control panel
- CONNECT BMS compatible
- Heats up to 175 m²
- Heavy duty dust filters
- 5-year warranty
In stock
Estimated delivery: 2-4 working days
Add-ons
Optional accessories Please select
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
The El-Björn TF9 EBC is a 9kW electric fan heater with a digital control panel, designed for smaller commercial spaces. It is compatible with El-Björn CONNECT, so you can monitor and operate it remotely.
Portable 9kW heat for sites and small units
The TF9 EBC suits construction sites, industrial areas, event venues, warehouses, retail shops and workshops. You can run it alongside TF18 heaters when a space needs more output, and its small footprint keeps it easy to move.
4.5kW and 9kW settings for areas up to 175 m²
Choose 4.5kW or 9kW and let the three adjustable ejectors direct warm air where it is needed, holding a constant temperature in areas up to 175 m². Airflow is 1,000 m³/h or 1,500 m³/h, with noise of 54 dB(A) or 61 dB(A). Heavy duty dust filters trap particles down to 0.01mm.
Digital controls and remote monitoring with CONNECT
The front-mounted digital control panel sets the temperature and fan speed. Compatibility with the El-Björn CONNECT building management system (BMS) allows remote monitoring and operation.
Power connection, dimensions and weight
You can run it from a 400V 3 phase supply using a 5-pin 16A CEE 416-6 plug, with a rated current of 13A. The two-part unit measures 700 x 440 x 460 mm (H x W x D) without the distributor and 940 mm high with it, and weighs 32.5kg in total (16kg top, 16.5kg bottom). The galvanised sheet steel body has a corrosion-resistant powder coating and an IP44 (ingress protection rating) classification.
Specifications
