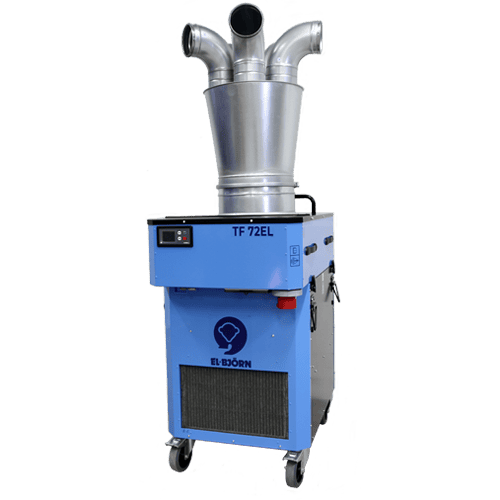

El-Björn TF72 EBC 72kW Commercial Fan Heater
El-Björn TF72 EBC 72kW Commercial Fan Heater
SKU: EB14647
Shipping calculated at checkout.
- 72kW from a 125A plug
- Heats up to 1,500 m³
- Digital control panel
- CONNECT BMS compatible
- Roll wheels with brakes
- 5-year warranty
In stock
Estimated delivery: 2-4 working days
Add-ons
Optional accessories Please select
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
The El-Björn TF72 EBC is the largest and most powerful heater in the TF range, a 72kW electric fan heater with a digital control panel for large commercial spaces. It is compatible with the El-Björn CONNECT building management system (BMS).
72kW for warehouses, venues and temporary structures
The TF72 EBC suits construction sites, data centres, warehouses, retail units, event venues and temporary structures. Choose 36kW or 72kW to hold a comfortable temperature in areas up to 1,500 m³.
Warm air spread 360° by the sheet metal distributor
The sheet metal air distributor spreads heat evenly around the space. Airflow is 6,454 m³/h or 7,900 m³/h, with noise of 63 dB(A) or 69 dB(A), and heavy duty dust filters trap particles down to 0.01mm.
Digital controls and remote monitoring with CONNECT
The front-mounted digital control panel sets the temperature and fan speed. With El-Björn CONNECT you can monitor and operate the heater remotely. Smooth roll wheels with locking brakes make repositioning easy.
Power connection, dimensions and weight
You can run it from a 400V 3 phase supply using a 5-pin 125A CEE 4125-6 plug, with a rated current of 110A. The heater measures 1400 x 740 x 1110 mm (H x W x D) without the distributor and 2250 mm high with it, and weighs 180kg in total (72kg top, 96.5kg bottom, 11.5kg distributor). The galvanised sheet steel body has a corrosion-resistant powder coating and an IP44 (ingress protection rating) classification.
