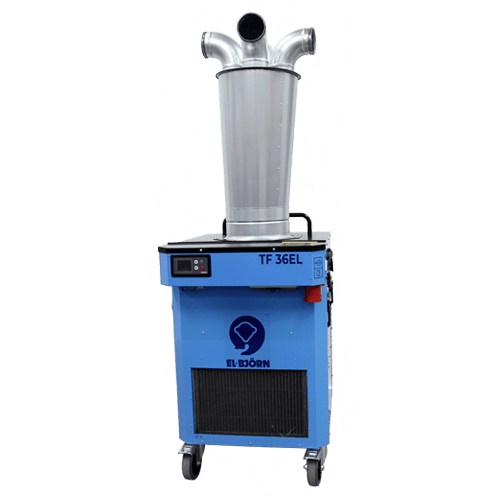

El-Björn TF36 EBC 36kW Commercial Fan Heater
El-Björn TF36 EBC 36kW Commercial Fan Heater
SKU: EB14646
Shipping calculated at checkout.
- 36kW from a 63A plug
- Heats up to 600 m³
- Password-protected controls
- CONNECT BMS compatible
- Roll wheels with brakes
- 5-year warranty
In stock
Estimated delivery: 2-4 working days
Add-ons
Optional accessories Please select
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
The El-Björn TF36 EBC is one of the most powerful heaters in the TF range, a 36kW electric fan heater with a digital control panel for large commercial spaces. It is compatible with the El-Björn CONNECT building management system (BMS).
36kW for large sites and data centres
The TF36 EBC suits construction sites, data centres, industrial areas, event venues and warehouses. Choose 18kW or 36kW to hold a comfortable temperature in areas up to 600 m³.
Warm air spread 360° by the sheet metal distributor
The sheet metal air distributor spreads heat evenly around the space. Airflow is 3,850 m³/h or 4,650 m³/h, with noise of 63 dB(A) or 68 dB(A), and heavy duty dust filters trap particles down to 0.01mm.
Digital controls with password protection
The front-mounted digital control panel sets the temperature and fan speed, and password protection prevents unauthorised use. With El-Björn CONNECT you can monitor and operate the heater remotely. Smooth roll wheels with locking brakes make repositioning easy.
Power connection, dimensions and weight
You can run it from a 400V 3 phase supply using a 5-pin 63A CEE 463-6 plug, with a rated current of 57A. The heater measures 1200 x 740 x 935 mm (H x W x D) without the distributor and 2150 mm high with it, and weighs 127.5kg in total (41.5kg top, 77.5kg bottom, 8.5kg distributor). The galvanised sheet steel body has a corrosion-resistant powder coating and an IP44 (ingress protection rating) classification.
Specifications
Shipping
We deliver using trusted parcel couriers and pallet services. Larger, heavier or fragile items are delivered to the kerbside, and someone must be available to accept them.
Delivery charges depend on your order and location. Remote or offshore areas may incur additional charges. We will email tracking details once your order is dispatched.
Warranty
Return Policy
Consumer customers can cancel within 14 calendar days of receiving their order. Return costs are the customer's responsibility. Different conditions apply to business purchases.
Please inspect your delivery on arrival and contact our team promptly about damage or missing items. Contact us before arranging a return.
