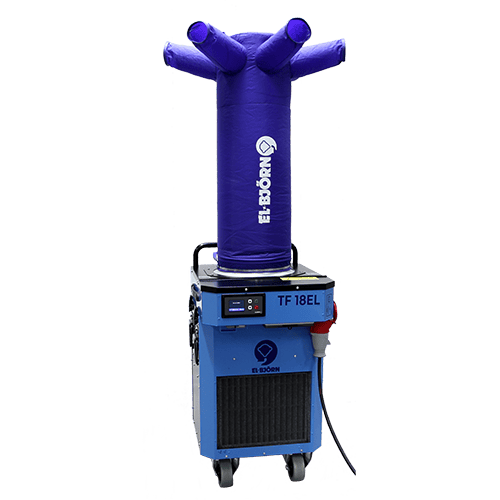

El-Björn TF18 EBC 18kW Commercial Fan Heater
El-Björn TF18 EBC 18kW Commercial Fan Heater
SKU: EB17462
Shipping calculated at checkout.
- 18kW from a 32A plug
- Digital control panel
- CONNECT BMS compatible
- 360° textile distributor
- Heavy duty dust filters
- Roll wheels with brakes
In stock
Estimated delivery: 2-4 working days
Add-ons
Optional accessories Please select
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
The El-Björn TF18 EBC is an 18kW electric fan heater that adds a digital control system to the popular TF18 design. It is compatible with the El-Björn CONNECT building management system (BMS) for remote monitoring and operation.
18kW for medium-sized sites and data centres
The TF18 EBC suits construction sites, data centres, industrial areas, event venues and warehouses. Choose 9kW or 18kW to hold a comfortable temperature in areas up to 350 m³.
Warm air spread 360° by the textile distributor
The textile air distributor spreads heat evenly around the space. Airflow is 2,040 m³/h or 2,500 m³/h with a temperature increase of 22°C or 23°C, and noise of 57 dB(A) or 62 dB(A). Heavy duty dust filters trap particles down to 0.01mm.
Digital controls and remote monitoring with CONNECT
The front-mounted digital control panel sets the temperature and fan speed for greater climate control. With El-Björn CONNECT you can monitor and operate the heater remotely. Smooth roll wheels with locking brakes make repositioning easy.
Power connection, dimensions and weight
You can run it from a 400V 3 phase supply using a 5-pin 32A CEE 432-6 plug, with a rated current of 27A. The heater measures 1000 x 560 x 640 mm (H x W x D) without the distributor and 2150 mm high with it, and weighs 66kg in total (23.5kg top, 42.5kg bottom). The galvanised sheet steel body has a corrosion-resistant powder coating and an IP44 (ingress protection rating) classification.
Specifications
Shipping
We deliver using trusted parcel couriers and pallet services. Larger, heavier or fragile items are delivered to the kerbside, and someone must be available to accept them.
Delivery charges depend on your order and location. Remote or offshore areas may incur additional charges. We will email tracking details once your order is dispatched.
Warranty
Return Policy
Consumer customers can cancel within 14 calendar days of receiving their order. Return costs are the customer's responsibility. Different conditions apply to business purchases.
Please inspect your delivery on arrival and contact our team promptly about damage or missing items. Contact us before arranging a return.
