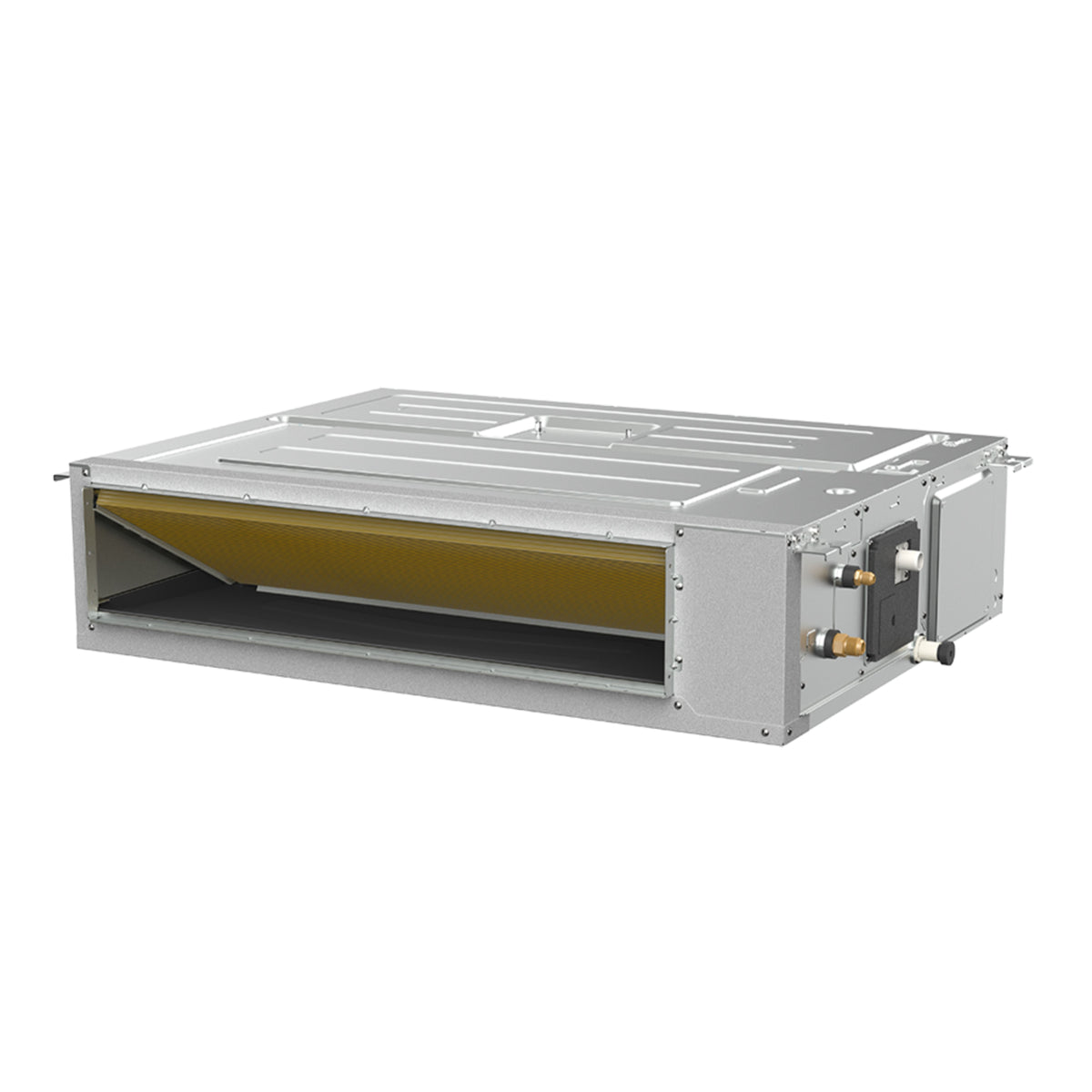

Kaysun DVTR15 16kW Ducted Split System
Kaysun DVTR15 16kW Ducted Split System
SKU: KPDA-160 DTR15
Shipping calculated at checkout.
- Airflow up to 2200m³/h
- Pushes air through ducts
- Self-adjusting airflow
- Vertical or horizontal fitting
- Works with BMS control
- Cleaner indoor air
In stock
Estimated delivery: 2-4 working days
Add-ons
Refrigerant pipe length None
Outdoor unit wall brackets None
Controls None
Add-ons Total inc VAT
- Rapid delivery
- 14-day returns
- Price match guarantee
Description
Built for a space of 150m², the Kaysun DVTR15 ducted split system heats and cools through concealed ductwork, so no unit is on show in the room. It suits homes and commercial buildings that need even comfort from a single system.
Balanced air across a large space
Hidden ductwork carries the air to diffusers around the space, and the system balances the flow so no corner is left out. Fresh outdoor air can be drawn in through a pre-stamped side opening, and the unit sets its static pressure, the push behind the airflow, by itself.
Up to 2200m³/h and 200 Pa
With up to 200 Pa of static pressure behind it, the fan pushes as much as 2200m³/h of air along the ducts, holding performance steady at each diffuser. Energy use is A++ rated, with 5.25 kW drawn when cooling and 5.15 kW when heating.
Fits into a building's controls
A control board and a remote control cover day-to-day adjustments, and BMS (building management system) gateway compatibility lets the unit be monitored and managed centrally with the rest of the building. The indoor unit runs at 41.5 to 44.5 dB(A), and the outdoor unit at 65 dB(A).
What a 400V installation needs
- Indoor unit of 47.4kg, fits vertically or horizontally
- Outdoor unit of 92kg
- 3/8 inch liquid and 5/8 inch gas pipes
- 400V power supply and R32 refrigerant
- Installed by an F-Gas registered installer
